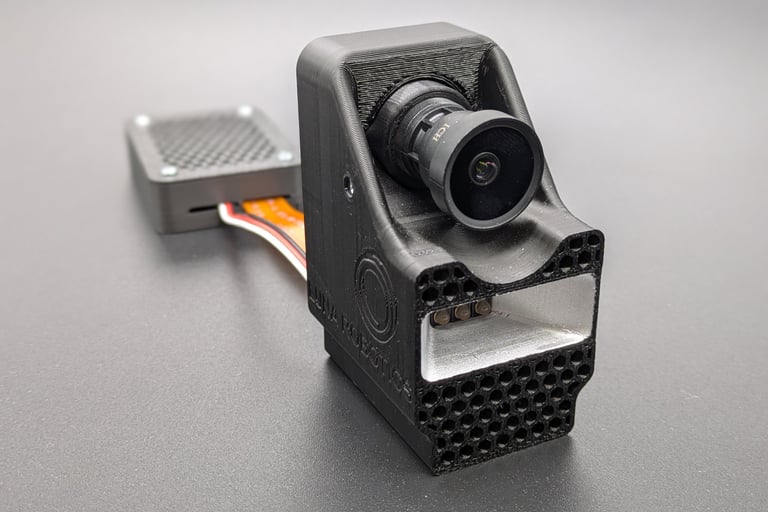

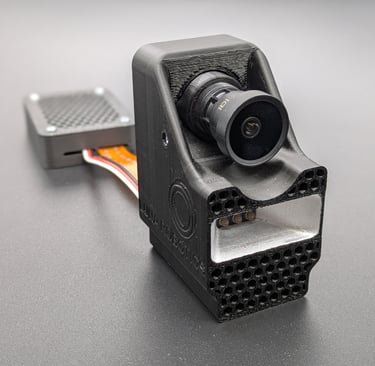

NVX-AI4 night vision camera

Advanced night vision smart camera allows flying with infrared emitter turned off in most lighting conditions. Onboard real time software image enhancement provides crystal clear low latency video.

• Weight: 120g

• Input voltage: 5-35v

• Sensor type: CMOS, Back side illuminated

• Sensor format: 1/2.8”, 2.1MP (other options available)

• Lense: M16, F1.0

• Field of view: 90 degrees (50 and 125 degree options available)

• FPS: variable 30-60

• Glass to glass latency: ~70ms

• Video output: Composite video (CVBS) - PAL/NTSC Grayscale (color option available)

• Infrared illumination distance: up to 300m

• Infrared wavelength: 850nm

• Infrared radiance angle: Concentrated light at 50 degrees, scattered light at 90 degrees

• Led driver max power output: 70W

• Processing unit: Raspberry CM4 paired with Luna Robotics LXR1 expander board (to be replaced with our own SBC)

• Interfaces: 2x MIPI camera. 4x Uart. 1x CVBS output

• Features: Led power controllable through transmitter, Real time image enhancement. Diversity RX controller (up to 3 receivers)
